5KW On&Off-grid Complete Solar System
This 5KW Hybrid Solar Power Home System is designed to generate an impressive 29.7KWh of clean energy daily, making it an ideal choice for households with high energy demands, accommodating 4-5 people or more. The system comes equipped with a solar battery storage capacity of approximately 10KWh, ensuring reliable power supply even during cloudy days or nighttime.
Battery Bank Storage
Electrical Supply
PRODUCT INFO
5kW on&off-grid Complete Solar Solution.
- Daily power generation: <29.7KWH
- Battery Bank Storage:9.6KWH
- Gel battery system: Total volume:1.8CBM / weight:525KG.
- LiFePO4 system: Total Volume:1.6cbm/weight:430kg.
Comes complete with:
- Solar Panels: Maximum 700W solar panel optional.
- Powerful Inverter:BD5KTL-RL1 MAX PV input:7KW
- Solar battery: Gel or Lithium battery.
- Panel rack: Slope Rooftop/ Flat rooftop/ground.
- Cables.
- Installation Tools.
SHIPPING INFO
Delivery 60 days from signed order and deposit payment, installation date to be agreed.
TECH SPECS
| Solar Panel | Vmp:38.39V Voc:47.13V Imp 9.25A Coated steel Glass:3.2mm Tempered. |
| Solar Inverter |
BD5KTL-RL1 MAX PV input:7KW MPPT range:125-500V Output current:21.7A Output power:5KVA Output voltage :230V, L + N + PE Battery voltage:48V Charge current:95A Full Battery Voltage:58V European Efficiency:97% Size:550 x 515 x 200 mm Weight:25KG Communication：Standard: RS485 / CAN / DRM Optional: WIFI / 4G |
| Solar Battery |

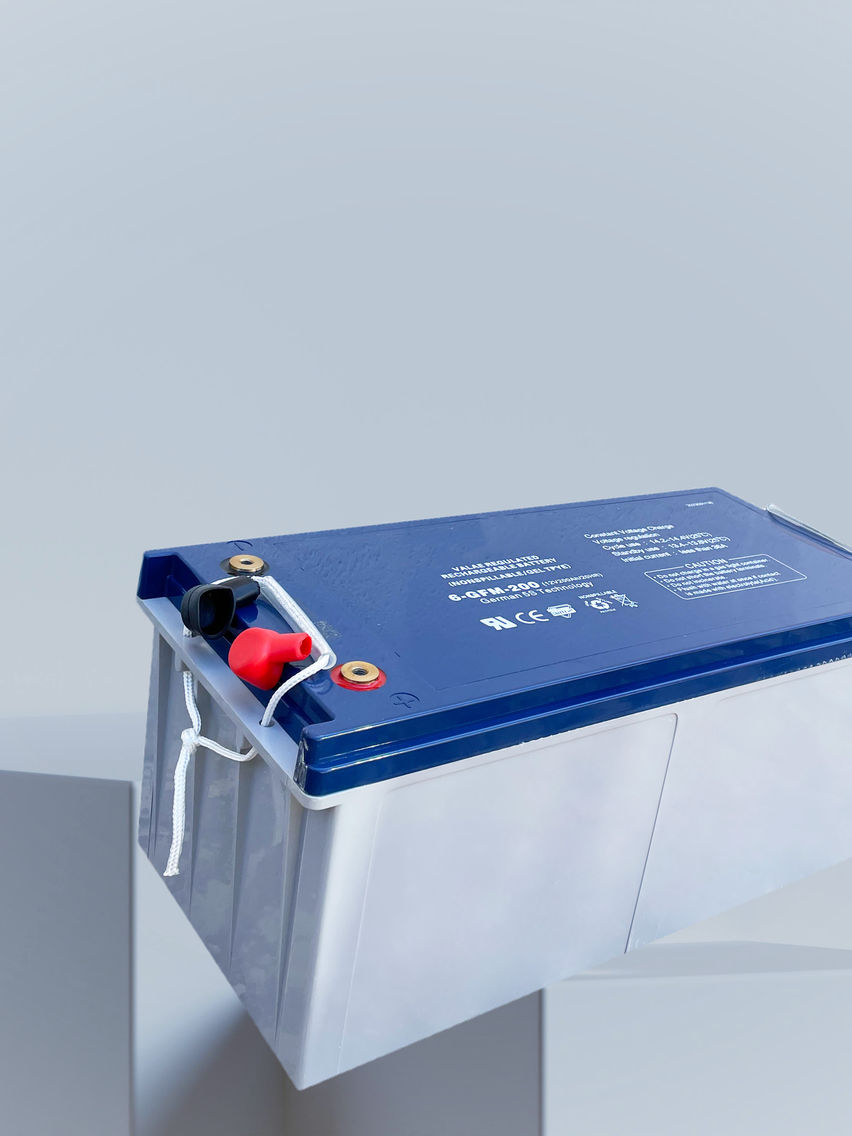

1.Gel Battery: Capacity:12V/200AH Warranty: 2 years. Service life:6-8 years Size:522*240*219mm
|
| Bracket |
Slope Rooftop /Flat rooftop/ground wind load:55m/s. Snow load:1.5kn/m2 |
| Accessories |
1) 3pcs 16mm2*35CM battery cable 4pcs 16mm 2M battery cable 16mm 10M power cable 2)4mm2 PV cable 50M*2pcs 3)terminals and MC4+1P63A Battery switch BOX |
