100KW On&Off-grid Complete Solar System
A 100kW Hybrid solar system
To make the most of the generated solar energy, a 100kW hybrid system includes energy storage technology, such as lithium-ion batteries. These batteries store excess energy during sunny days for later use during the night or cloudy periods, increasing self-sufficiency and reducing reliance on the grid.
Battery Bank Storage
Electrical Supply
PRODUCT INFO

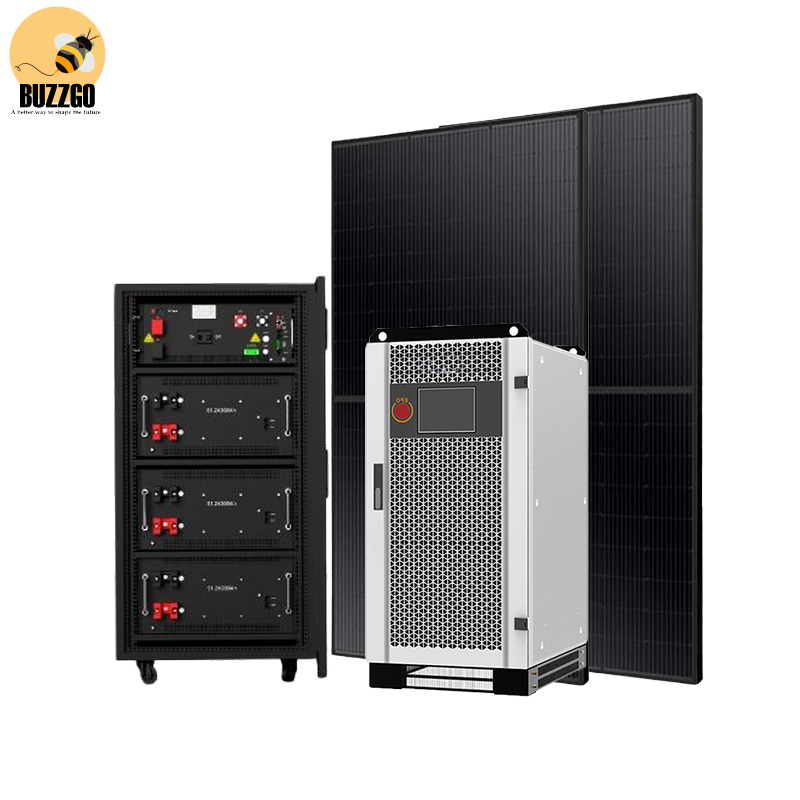

100kW Three phase on&off-grid Complete Solar Solution.
- Daily power generation: <594KWH.
- Battery Bank Storage:153KWH.
- Gel battery system: Total volume:8.5CBM / weight:3860KG.
- LiFePO4 system: Total Volume:7.8cbm/weight:2850kg.
Comes complete with:
- Solar Panels: Maximum 700W solar panel optional.
- Powerful Inverter:BD100KTR-P MAX PV input:110KW
- Solar battery: Gel or Lithium battery.
- Panel rack: Slope Rooftop/ Flat rooftop/ground.
- Cables.
- Installation Tools.
SHIPPING INFO
Delivery 60 days from signed order and deposit payment, installation date to be agreed.
TECH SPECS
Solar Panels
FS700W Shingled solar panel
Vmp:39.47V Voc:48.077V
Imp:13.942A Isc:14.672
210*210 cells
Efficiency:20.54%
weight:26KG
Size:2158*1236*35mm，
25 years product warranty.
Three phase on/off grid inverter
BD100KTR-P
MAX PV input:110KW
MPPT range:250-850V
Rate current:144A Output power:110KVA
Otuput voltage :400V , 3L+N+PE
Battery voltage:384V European Efficiency:97.5%
Size:1200 x 2050 x 800 mm Weight:1120KG
Communication：Standard: RS485 / CAN / DRM
Optional: WiFi / 4G
Gel Battery
Capacity:12V/250AH
Warranty:3 years
Service life:6-8 years
Size:522*240*219mm.
Lithium battery
Model number: TFES384-100W
Voltage: 384v
Capacity: 100AH
Nominal capacity: 38.4KWh
Max discharge current:200A
Cycle life: 6000
Material: LiFePO4
With high voltage system cabinet
Size:560*600*1800mm.
Panel rack
Slope Rooftop /Flat rooftop/ground
wind load:55m/s,snow load:1.5kn/m2
structure:Anodized Aluminum+stainless steel, Angle adjustable (other type of rack can be customized as per client’s requirement ).
Cables
1)4pcs 25mm2*2M battery cable
25mm 25M power cable
2)4mm2 PV cable 100M*2pcs
3)terminals and MC4+2P 100A Power switch box
4)one set MC4 tool
